Specification
| General Properties | |
| Dimension L*W*H (mm) | 1639*990*1990 |
| Weight (kg) | 845 |
| Rated load (kg) | 1000 |
| Load centre (kg) | 600 |
| Fork lifting height (mm) | 1950±3 |
| Maximum mast height (mm) | 2684 |
| Fork dimension (s/e/l) (mm) | 60/255/1220 |
| Fork spread (mm) | 720(customizable) |
| Pallet size (mm) | 1200*1000 |
| Motion Performance | |
| Rated speed (rated/empty load) (mm/s) | 1000/1200 |
| Position accuracy (mm) | ±5 |
| Angular accuracy (°) | ±1 |
| Driving mode | Omni-directional, forward, backward, sidesway, skew, rotation, arc. |
| Min. operation aisle (1200*1000 pallet/100mm at each side) (mm | 1988 |
| Safety Protection | |
| Laser obstacle avoidance | Available |
| Driving recorder | Available |
| Bumper strip | Available |
| Pallet in-position detection | Available |
| Fork infrared sensor | Available |
| Scram button | Available |
| Indication light | Available |
| Sound alarm | Available |
| Battery Performance | |
| Endurance(h) | 6 – 8 |
| Charging time(h) | ≤2 |
| Others | |
| Display screen | 10.1 |
| Navigation mode | Laser Slam |
| Pallet recognition | Optional |
| Visual barcode reading | Optional |
| RFID reader | Optional |
| Fork size customization | Optional |
| Mast customization | Optional |
High Stability, Self-adaption and Efficiency
- Adaptable to different carriers
- Safety
- Flexibility
- Efficiency
Automobile
Consumer Electronics

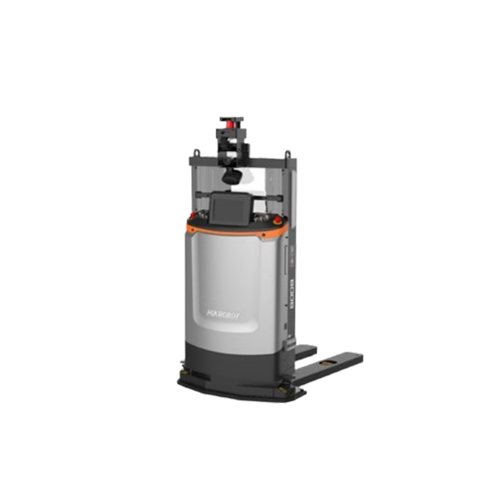

- Forklift Mobile Robot (FMR) from HIKrobot also intelligent and flexible mobile robot solutions are widely applied in Consumer Electronics manufacturing (Computer, Communication, Consumer Electronic). Plant-wide material transfer management can be unmanned, automated, informationized.
