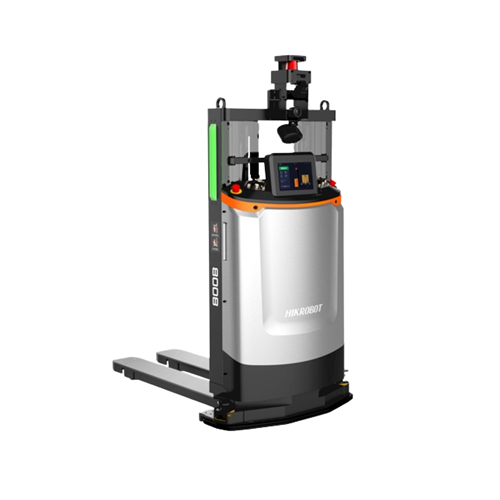

HIKRobot Forklift Mobile Robot (FMR) focuses on the automatic transfer of standard bins/pallets. It adopts high precision laser SLAM navigation, vision navigation, which realize high positioning accuracy of up to ±5mm.

Specification

General Properties Dimension L*W*H (mm) 1600*990*1870
Weight (kg) 800
Rated load (kg) 600
Load center (mm) 600
Forklifting height (mm) 2000
Height of mast, extended (mm) 2665
Fork dimension s*e*l (mm) 55*206*1150
Fork spread (mm) 540/Customizable
Pallet size (mm) 1200*800
Navigate Laser SLAM
Screen (in) 11



Motion Performance Laser obstacle avoidance Available
Automobile data recorder Optional
Bumper strip Available
Pallet in-position detection Available
Fork infrared sensor Available



Battery Performance Scram button Available
Caution light Available



Safety Protection Sound-light alarm Available
Rated speed (mm/s) 1200
Position accuracy(mm) ±5
Angular accuracy (°) ±1
Driving mode Omni-directional, forward,
backward,sidesway,skew,
rotation, arc.
Min. aisle width (1200*1000 mm pallet) (mm) 1800
Endurance (h) 6-8
Charging time (h) ≤1.5 (after deep discharge)



Others Pallet recognition Optional
Visual code reading Optional
Controllable fork
RFID reader Optional
Fork customization Optional
Mast customization Optional



High Stability, Self-adaption and Efficiency

  • Adaptable to different carriers
  • Safety
  • Flexibility
  • Efficiency
